mybatis系列-foreach 解析
在 org.apache.ibatis.builder.xml.XMLConfigBuilder#parseConfiguration 中进行配置解析,其中这一行就是解析 mappers1
mapperElement(root.evalNode("mappers"));
具体的代码会执行到这1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20private void mapperElement(XNode parent) throws Exception {
if (parent != null) {
for (XNode child : parent.getChildren()) {
if ("package".equals(child.getName())) {
// 这里解析的不是 package
String mapperPackage = child.getStringAttribute("name");
configuration.addMappers(mapperPackage);
} else {
// 根据 resource 和 url 还有 mapperClass 判断
String resource = child.getStringAttribute("resource");
String url = child.getStringAttribute("url");
String mapperClass = child.getStringAttribute("class");
// resource 不为空其他为空的情况,就开始将 resource 读成输入流
if (resource != null && url == null && mapperClass == null) {
ErrorContext.instance().resource(resource);
try(InputStream inputStream = Resources.getResourceAsStream(resource)) {
// 初始化 XMLMapperBuilder 来解析 mapper
XMLMapperBuilder mapperParser = new XMLMapperBuilder(inputStream, configuration, resource, configuration.getSqlFragments());
mapperParser.parse();
}
然后再是 parse 过程1
2
3
4
5
6
7
8
9
10
11
12public void parse() {
if (!configuration.isResourceLoaded(resource)) {

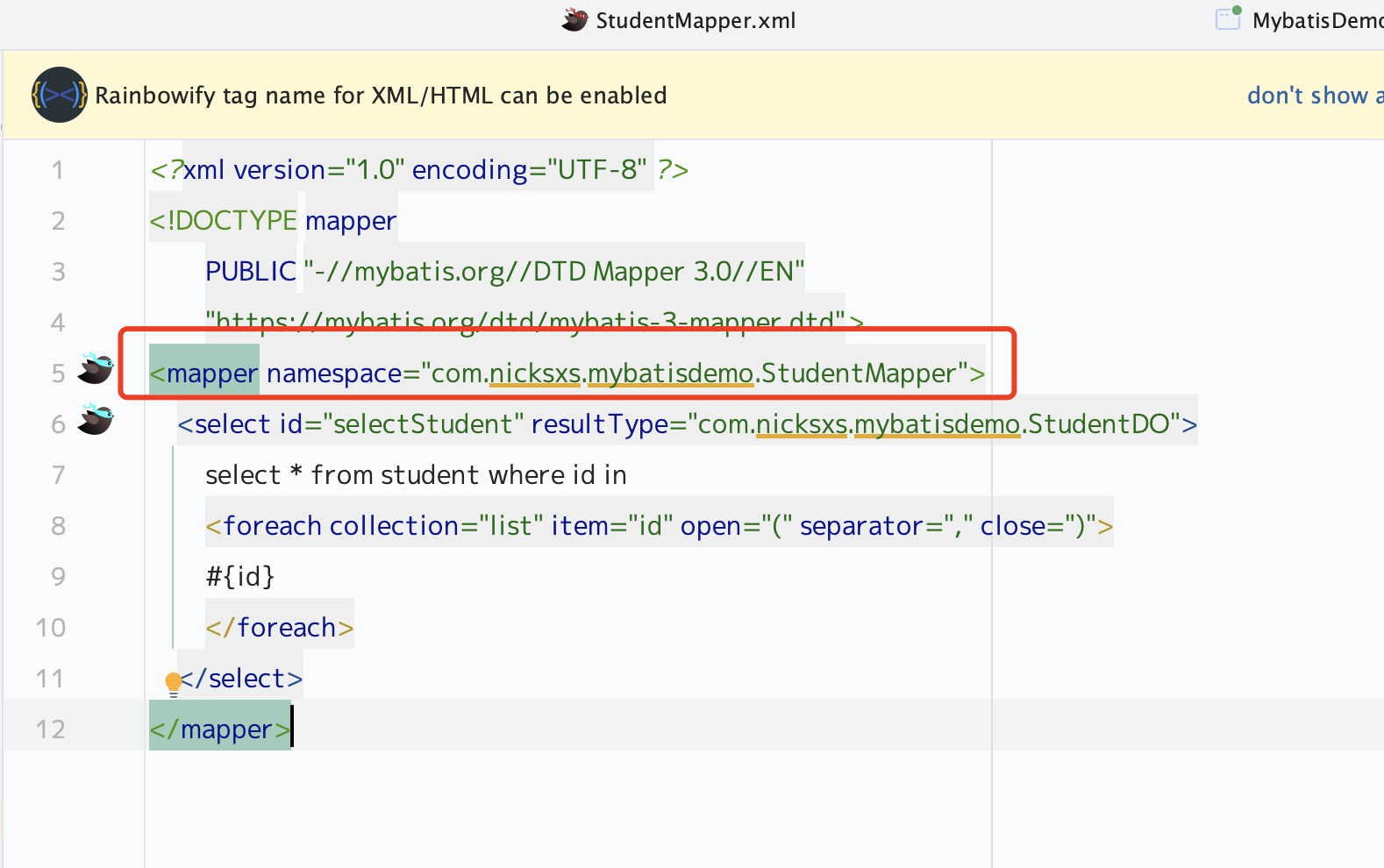

// 解析 mapper 节点,也就是下图中的mapper
configurationElement(parser.evalNode("/mapper"));
configuration.addLoadedResource(resource);
bindMapperForNamespace();
}
parsePendingResultMaps();
parsePendingCacheRefs();
parsePendingStatements();
}
继续往下走1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19private void configurationElement(XNode context) {
try {
String namespace = context.getStringAttribute("namespace");
if (namespace == null || namespace.isEmpty()) {
throw new BuilderException("Mapper's namespace cannot be empty");
}
builderAssistant.setCurrentNamespace(namespace);
// 处理cache 和 cache 应用
cacheRefElement(context.evalNode("cache-ref"));
cacheElement(context.evalNode("cache"));
parameterMapElement(context.evalNodes("/mapper/parameterMap"));
resultMapElements(context.evalNodes("/mapper/resultMap"));
sqlElement(context.evalNodes("/mapper/sql"));
// 因为我们是个 sql 查询,所以具体逻辑是在这里面
buildStatementFromContext(context.evalNodes("select|insert|update|delete"));
} catch (Exception e) {
throw new BuilderException("Error parsing Mapper XML. The XML location is '" + resource + "'. Cause: " + e, e);
}
}
然后是1
2
3
4
5
6
7private void buildStatementFromContext(List<XNode> list) {
if (configuration.getDatabaseId() != null) {
buildStatementFromContext(list, configuration.getDatabaseId());
}
// 然后没有 databaseId 就走到这
buildStatementFromContext(list, null);
}
继续1
2
3
4
5
6
7
8
9
10
11
12private void buildStatementFromContext(List<XNode> list, String requiredDatabaseId) {
for (XNode context : list) {
// 创建语句解析器
final XMLStatementBuilder statementParser = new XMLStatementBuilder(configuration, builderAssistant, context, requiredDatabaseId);
try {
// 解析节点
statementParser.parseStatementNode();
} catch (IncompleteElementException e) {
configuration.addIncompleteStatement(statementParser);
}
}
}
这个代码比较长,做下简略,只保留相关代码1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21public void parseStatementNode() {
String id = context.getStringAttribute("id");
String databaseId = context.getStringAttribute("databaseId");
if (!databaseIdMatchesCurrent(id, databaseId, this.requiredDatabaseId)) {
return;
}
String nodeName = context.getNode().getNodeName();
SqlCommandType sqlCommandType = SqlCommandType.valueOf(nodeName.toUpperCase(Locale.ENGLISH));
boolean isSelect = sqlCommandType == SqlCommandType.SELECT;
boolean flushCache = context.getBooleanAttribute("flushCache", !isSelect);
boolean useCache = context.getBooleanAttribute("useCache", isSelect);
boolean resultOrdered = context.getBooleanAttribute("resultOrdered", false);
// 简略前后代码,主要看这里,创建 sqlSource
SqlSource sqlSource = langDriver.createSqlSource(configuration, context, parameterTypeClass);
然后根据 LanguageDriver,我们这用的 XMLLanguageDriver,先是初始化1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
public SqlSource createSqlSource(Configuration configuration, XNode script, Class<?> parameterType) {
XMLScriptBuilder builder = new XMLScriptBuilder(configuration, script, parameterType);
return builder.parseScriptNode();
}
// 初始化有一些逻辑
public XMLScriptBuilder(Configuration configuration, XNode context, Class<?> parameterType) {
super(configuration);
this.context = context;
this.parameterType = parameterType;
// 特别是这,我这次特意在 mapper 中加了 foreach,就是为了说下这一块的解析
initNodeHandlerMap();
}
// 设置各种类型的处理器
private void initNodeHandlerMap() {
nodeHandlerMap.put("trim", new TrimHandler());
nodeHandlerMap.put("where", new WhereHandler());
nodeHandlerMap.put("set", new SetHandler());
nodeHandlerMap.put("foreach", new ForEachHandler());
nodeHandlerMap.put("if", new IfHandler());
nodeHandlerMap.put("choose", new ChooseHandler());
nodeHandlerMap.put("when", new IfHandler());
nodeHandlerMap.put("otherwise", new OtherwiseHandler());
nodeHandlerMap.put("bind", new BindHandler());
}
初始化解析器以后就开始解析了1
2
3
4
5
6
7
8
9
10
11public SqlSource parseScriptNode() {
// 先是解析 parseDynamicTags
MixedSqlNode rootSqlNode = parseDynamicTags(context);
SqlSource sqlSource;
if (isDynamic) {
sqlSource = new DynamicSqlSource(configuration, rootSqlNode);
} else {
sqlSource = new RawSqlSource(configuration, rootSqlNode, parameterType);
}
return sqlSource;
}
但是这里可能做的事情比较多1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33protected MixedSqlNode parseDynamicTags(XNode node) {
List<SqlNode> contents = new ArrayList<>();
// 获取子节点,这里可以把我 xml 中的 SELECT 语句分成三部分,第一部分是 select 到 in,然后是 foreach 部分,最后是\n结束符
NodeList children = node.getNode().getChildNodes();
for (int i = 0; i < children.getLength(); i++) {
XNode child = node.newXNode(children.item(i));
// 第一个节点是个纯 text 节点就会走到这
if (child.getNode().getNodeType() == Node.CDATA_SECTION_NODE || child.getNode().getNodeType() == Node.TEXT_NODE) {
String data = child.getStringBody("");
TextSqlNode textSqlNode = new TextSqlNode(data);
if (textSqlNode.isDynamic()) {
contents.add(textSqlNode);
isDynamic = true;
} else {
// 在 content 中添加这个 node
contents.add(new StaticTextSqlNode(data));
}
} else if (child.getNode().getNodeType() == Node.ELEMENT_NODE) { // issue #628
// 第二个节点是个带 foreach 的,是个内部元素节点
String nodeName = child.getNode().getNodeName();
// 通过 nodeName 获取处理器
NodeHandler handler = nodeHandlerMap.get(nodeName);
if (handler == null) {
throw new BuilderException("Unknown element <" + nodeName + "> in SQL statement.");
}
// 调用处理器来处理
handler.handleNode(child, contents);
isDynamic = true;
}
}
// 然后返回这个混合 sql 节点
return new MixedSqlNode(contents);
}
再看下 handleNode 的逻辑1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
public void handleNode(XNode nodeToHandle, List<SqlNode> targetContents) {
// 又会套娃执行这里的 parseDynamicTags
MixedSqlNode mixedSqlNode = parseDynamicTags(nodeToHandle);
String collection = nodeToHandle.getStringAttribute("collection");
Boolean nullable = nodeToHandle.getBooleanAttribute("nullable");
String item = nodeToHandle.getStringAttribute("item");
String index = nodeToHandle.getStringAttribute("index");
String open = nodeToHandle.getStringAttribute("open");
String close = nodeToHandle.getStringAttribute("close");
String separator = nodeToHandle.getStringAttribute("separator");
ForEachSqlNode forEachSqlNode = new ForEachSqlNode(configuration, mixedSqlNode, collection, nullable, index, item, open, close, separator);
targetContents.add(forEachSqlNode);
}
// 这里走的逻辑不一样了
protected MixedSqlNode parseDynamicTags(XNode node) {
List<SqlNode> contents = new ArrayList<>();
// 这里是 foreach 内部的,所以是个 text_node
NodeList children = node.getNode().getChildNodes();
for (int i = 0; i < children.getLength(); i++) {
XNode child = node.newXNode(children.item(i));
// 第一个节点是个纯 text 节点就会走到这
if (child.getNode().getNodeType() == Node.CDATA_SECTION_NODE || child.getNode().getNodeType() == Node.TEXT_NODE) {
String data = child.getStringBody("");
TextSqlNode textSqlNode = new TextSqlNode(data);
// 判断是否动态是根据代码里是否有 ${}
if (textSqlNode.isDynamic()) {
contents.add(textSqlNode);
isDynamic = true;
} else {
// 所以还是会走到这
// 在 content 中添加这个 node
contents.add(new StaticTextSqlNode(data));
}
// 最后继续包装成 MixedSqlNode
// 再回到这里
public void handleNode(XNode nodeToHandle, List<SqlNode> targetContents) {
MixedSqlNode mixedSqlNode = parseDynamicTags(nodeToHandle);
// 处理 foreach 内部的各个变量
String collection = nodeToHandle.getStringAttribute("collection");
Boolean nullable = nodeToHandle.getBooleanAttribute("nullable");
String item = nodeToHandle.getStringAttribute("item");
String index = nodeToHandle.getStringAttribute("index");
String open = nodeToHandle.getStringAttribute("open");
String close = nodeToHandle.getStringAttribute("close");
String separator = nodeToHandle.getStringAttribute("separator");
ForEachSqlNode forEachSqlNode = new ForEachSqlNode(configuration, mixedSqlNode, collection, nullable, index, item, open, close, separator);
targetContents.add(forEachSqlNode);
}
再回过来1
2
3
4
5
6
7
8
9
10
11
12public SqlSource parseScriptNode() {
MixedSqlNode rootSqlNode = parseDynamicTags(context);
SqlSource sqlSource;
// 因为在 foreach 节点处理时直接是把 isDynamic 置成了 true
if (isDynamic) {
// 所以是个 DynamicSqlSource
sqlSource = new DynamicSqlSource(configuration, rootSqlNode);
} else {
sqlSource = new RawSqlSource(configuration, rootSqlNode, parameterType);
}
return sqlSource;
}
这里就做完了预处理工作,真正在执行的执行的时候还需要进一步解析
因为前面讲过很多了,所以直接跳到这里1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
public <T> T selectOne(String statement, Object parameter) {
// Popular vote was to return null on 0 results and throw exception on too many.
// 都知道是在这进去
List<T> list = this.selectList(statement, parameter);
if (list.size() == 1) {
return list.get(0);
} else if (list.size() > 1) {
throw new TooManyResultsException("Expected one result (or null) to be returned by selectOne(), but found: " + list.size());
} else {
return null;
}
}
public <E> List<E> selectList(String statement, Object parameter) {
return this.selectList(statement, parameter, RowBounds.DEFAULT);
}
public <E> List<E> selectList(String statement, Object parameter, RowBounds rowBounds) {
return selectList(statement, parameter, rowBounds, Executor.NO_RESULT_HANDLER);
}
private <E> List<E> selectList(String statement, Object parameter, RowBounds rowBounds, ResultHandler handler) {
try {
// 前面也讲过这个,
MappedStatement ms = configuration.getMappedStatement(statement);
return executor.query(ms, wrapCollection(parameter), rowBounds, handler);
} catch (Exception e) {
throw ExceptionFactory.wrapException("Error querying database. Cause: " + e, e);
} finally {
ErrorContext.instance().reset();
}
}
// 包括这里,是调用的org.apache.ibatis.executor.CachingExecutor#query(org.apache.ibatis.mapping.MappedStatement, java.lang.Object, org.apache.ibatis.session.RowBounds, org.apache.ibatis.session.ResultHandler)
public <E> List<E> query(MappedStatement ms, Object parameterObject, RowBounds rowBounds, ResultHandler resultHandler) throws SQLException {
BoundSql boundSql = ms.getBoundSql(parameterObject);
CacheKey key = createCacheKey(ms, parameterObject, rowBounds, boundSql);
return query(ms, parameterObject, rowBounds, resultHandler, key, boundSql);
}
// 然后是获取 BoundSql
public BoundSql getBoundSql(Object parameterObject) {
BoundSql boundSql = sqlSource.getBoundSql(parameterObject);
List<ParameterMapping> parameterMappings = boundSql.getParameterMappings();
if (parameterMappings == null || parameterMappings.isEmpty()) {
boundSql = new BoundSql(configuration, boundSql.getSql(), parameterMap.getParameterMappings(), parameterObject);
}
// check for nested result maps in parameter mappings (issue #30)
for (ParameterMapping pm : boundSql.getParameterMappings()) {
String rmId = pm.getResultMapId();
if (rmId != null) {
ResultMap rm = configuration.getResultMap(rmId);
if (rm != null) {
hasNestedResultMaps |= rm.hasNestedResultMaps();
}
}
}
return boundSql;
}
// 因为前面讲了是生成的 DynamicSqlSource,所以也是调用这个的 getBoundSql
public BoundSql getBoundSql(Object parameterObject) {
DynamicContext context = new DynamicContext(configuration, parameterObject);
// 重点关注着
rootSqlNode.apply(context);
SqlSourceBuilder sqlSourceParser = new SqlSourceBuilder(configuration);
Class<?> parameterType = parameterObject == null ? Object.class : parameterObject.getClass();
SqlSource sqlSource = sqlSourceParser.parse(context.getSql(), parameterType, context.getBindings());
BoundSql boundSql = sqlSource.getBoundSql(parameterObject);
context.getBindings().forEach(boundSql::setAdditionalParameter);
return boundSql;
}
// 继续是这个 DynamicSqlNode 的 apply
public boolean apply(DynamicContext context) {
contents.forEach(node -> node.apply(context));
return true;
}

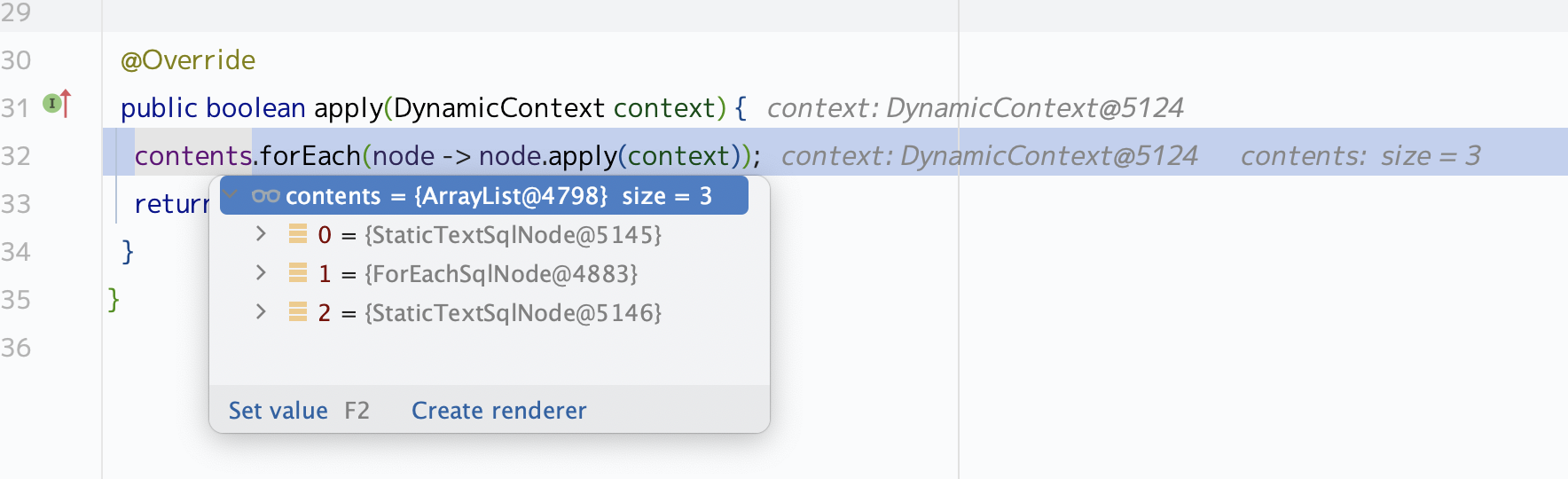

// 看下面的图
我们重点看 foreach 的逻辑1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
public boolean apply(DynamicContext context) {
Map<String, Object> bindings = context.getBindings();
final Iterable<?> iterable = evaluator.evaluateIterable(collectionExpression, bindings,
Optional.ofNullable(nullable).orElseGet(configuration::isNullableOnForEach));
if (iterable == null || !iterable.iterator().hasNext()) {
return true;
}
boolean first = true;
// 开始符号
applyOpen(context);
int i = 0;
for (Object o : iterable) {
DynamicContext oldContext = context;
if (first || separator == null) {
context = new PrefixedContext(context, "");
} else {
context = new PrefixedContext(context, separator);
}
int uniqueNumber = context.getUniqueNumber();
// Issue #709
if (o instanceof Map.Entry) {
Map.Entry<Object, Object> mapEntry = (Map.Entry<Object, Object>) o;
applyIndex(context, mapEntry.getKey(), uniqueNumber);
applyItem(context, mapEntry.getValue(), uniqueNumber);
} else {
applyIndex(context, i, uniqueNumber);
applyItem(context, o, uniqueNumber);
}
// 转换变量名,变成这种形式 select * from student where id in
// (
// #{__frch_id_0}
// )
contents.apply(new FilteredDynamicContext(configuration, context, index, item, uniqueNumber));
if (first) {
first = !((PrefixedContext) context).isPrefixApplied();
}
context = oldContext;
i++;
}
applyClose(context);
context.getBindings().remove(item);
context.getBindings().remove(index);
return true;
}

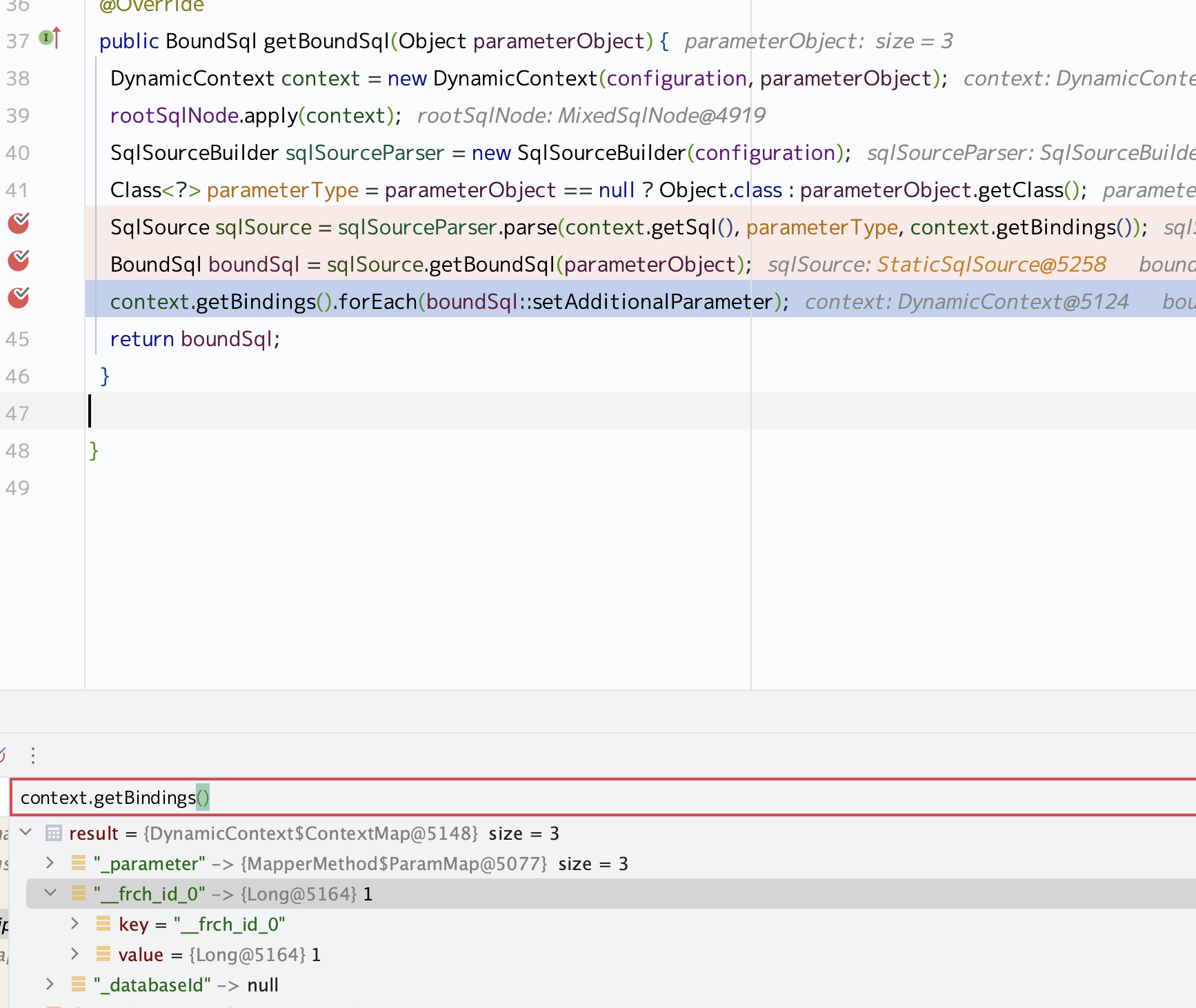

// 回到外层就会调用 parse 方法, 把#{} 这段替换成 ?
public SqlSource parse(String originalSql, Class<?> parameterType, Map<String, Object> additionalParameters) {
ParameterMappingTokenHandler handler = new ParameterMappingTokenHandler(configuration, parameterType, additionalParameters);
GenericTokenParser parser = new GenericTokenParser("#{", "}", handler);
String sql;
if (configuration.isShrinkWhitespacesInSql()) {
sql = parser.parse(removeExtraWhitespaces(originalSql));
} else {
sql = parser.parse(originalSql);
}
return new StaticSqlSource(configuration, sql, handler.getParameterMappings());
}

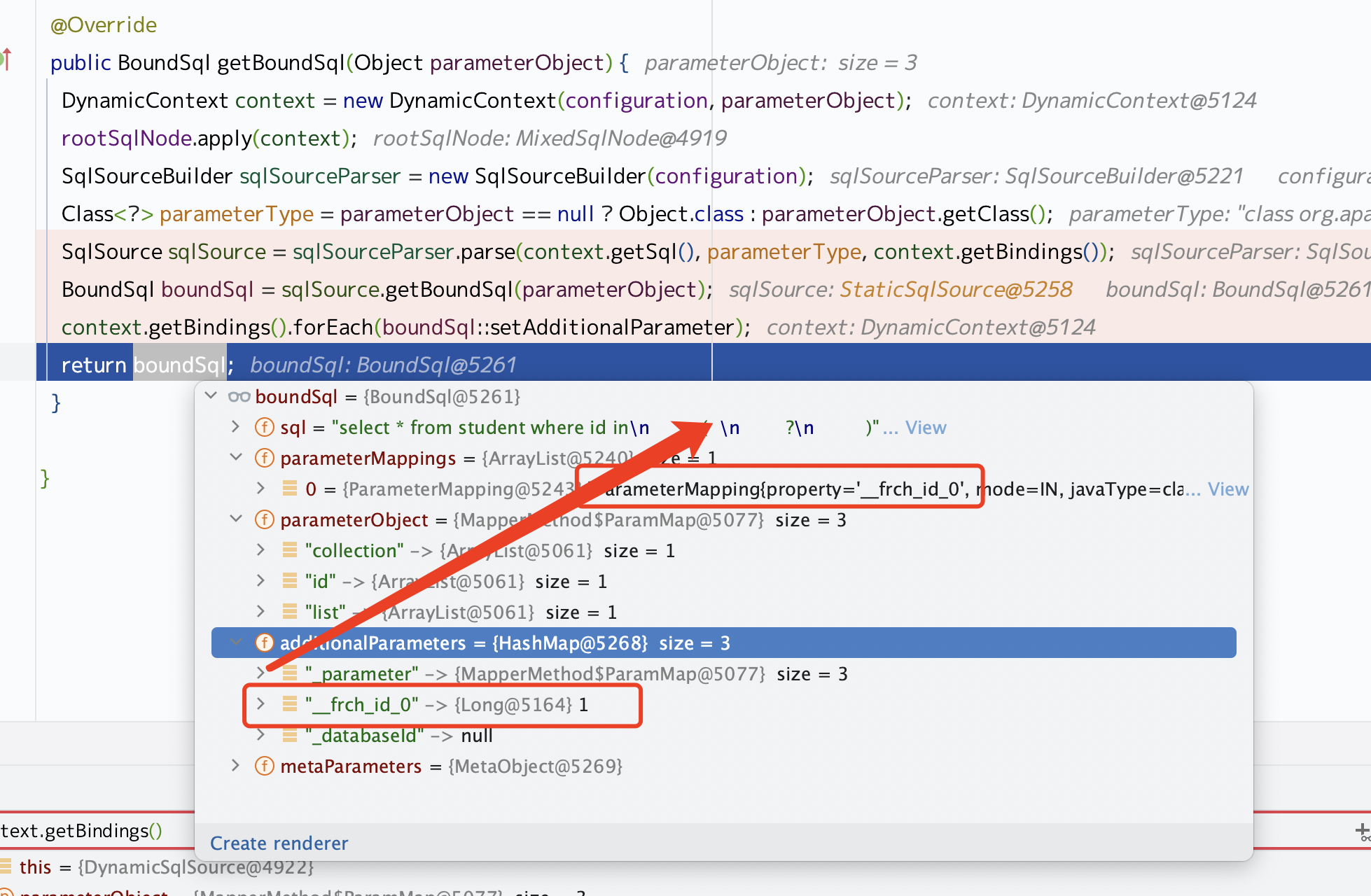

可以看到这里,然后再进行替换
真实的从 ?
替换成具体的变量值,是在这里org.apache.ibatis.executor.SimpleExecutor#doQuery
调用了1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47private Statement prepareStatement(StatementHandler handler, Log statementLog) throws SQLException {
Statement stmt;
Connection connection = getConnection(statementLog);
stmt = handler.prepare(connection, transaction.getTimeout());
handler.parameterize(stmt);
return stmt;
}
public void parameterize(Statement statement) throws SQLException {
parameterHandler.setParameters((PreparedStatement) statement);
}
public void setParameters(PreparedStatement ps) {
ErrorContext.instance().activity("setting parameters").object(mappedStatement.getParameterMap().getId());
List<ParameterMapping> parameterMappings = boundSql.getParameterMappings();
if (parameterMappings != null) {
for (int i = 0; i < parameterMappings.size(); i++) {
ParameterMapping parameterMapping = parameterMappings.get(i);
if (parameterMapping.getMode() != ParameterMode.OUT) {
Object value;
String propertyName = parameterMapping.getProperty();
if (boundSql.hasAdditionalParameter(propertyName)) { // issue #448 ask first for additional params
value = boundSql.getAdditionalParameter(propertyName);
} else if (parameterObject == null) {
value = null;
} else if (typeHandlerRegistry.hasTypeHandler(parameterObject.getClass())) {
value = parameterObject;
} else {
MetaObject metaObject = configuration.newMetaObject(parameterObject);
value = metaObject.getValue(propertyName);
}
TypeHandler typeHandler = parameterMapping.getTypeHandler();
JdbcType jdbcType = parameterMapping.getJdbcType();
if (value == null && jdbcType == null) {
jdbcType = configuration.getJdbcTypeForNull();
}
try {
// -------------------------->
// 替换变量
typeHandler.setParameter(ps, i + 1, value, jdbcType);
} catch (TypeException | SQLException e) {
throw new TypeException("Could not set parameters for mapping: " + parameterMapping + ". Cause: " + e, e);
}
}
}
}
}
